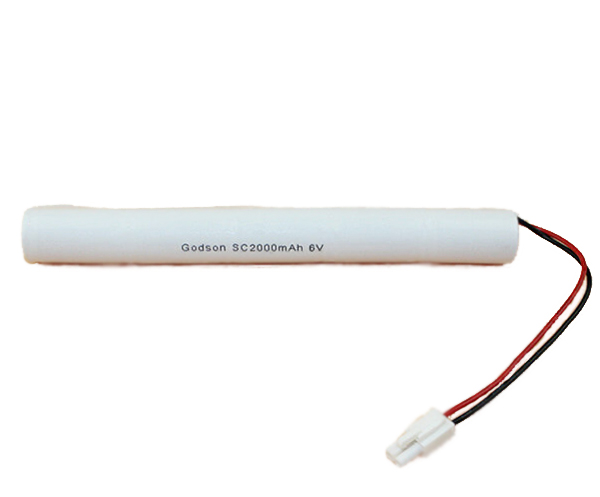

Ni-Cd Battery Pack SC2000mAh 6.0V

Product Name: Ni-Cd Rechargeable Battery Pack SC2000mAh 6.0V

Standard Charge Mode: 0.1C for 16 hours

Cycle Life: ≥500 times

Operating Temperature: (-20℃) - (+70℃)

Storage Temperature: (-30℃) - (+60℃)

Cell Dimension: 23 +0 -1.0(D), 42.5±0.5(H)

Cell Weight: ≈48g

Expected Life: 5 years

Packaging: Standard export package or customized package

Application:

1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights

2.Power tools: electric drills, planers, saws, power granted

3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft

4. Communication equipment: cordless phones, walkie-talkie

5. Other uses: electric shavers, massagers, electric tooth brush

Something to know about Ni-Cd battery

1.What is a Ni-Cd battery?

A nickel-cadmium battery (Ni-Cd or Ni-Cad) is a rechargeable battery used in portable computers, rigs, video cameras, and other small battery-powered devices that require uniform discharge. Ni-Cds use electrodes made from nickel oxide hydroxide, cadmium metal, and potassium hydroxide alkaline electrolyte.

2.Ni-Cd Battery Pack

Two or more Ni-Cd battery cells combined to form a battery pack.Because they are typically similar in size to primary cells (non-rechargeable batteries), Ni-Cds may have lower terminal voltages and smaller ampere-hour capacities. However, unlike primary cells, Ni-Cds provide a nearly constant terminal voltage during discharge, which can result in an almost undetectably low charge. During discharge, Ni-Cds convert chemical energy into electrical energy. During charging, Ni-Cds convert electrical energy back into chemical energy.

Advantages of Ni-Cd battery:

1.Ni-Cd battery has high charge and discharge efficiency and good safety performance at high temperature and has long service life under condition of long term floating charge, which makes it very suitable for emergency lighting application.In the case of high current discharge, nickel cadmium battery has low internal resistance and high voltage discharge characteristics, so it is widely used.

2.Working temperature for Ni-Cd battery could be up to 55 degree, and even up to 70 degree, and expected service life could be up to 4 to 5 years.

3.A wide range of applications. The capacity of nickel cadmium battery ranges from 100mah to 7000mah. There are four types commonly used: standard type, consumer type, high temperature type and high current discharge type, which can be applied to any wireless device.

4.More charge/discharge cycles than other rechargeable batteries to extend battery life

5.Higher energy density, lighter and more compact than lead-acid batteries Ni-Cd is preferred when size and weight are critical factors, such as in aircraft
6.Wide range temperature adaptability.Ordinary nickel cadmium batteries can be used in high or low temperature environment. High temperature batteries can be used at temperatures of 70 degrees Celsius or higher.

Ni-Cd Battery Cell Performance:

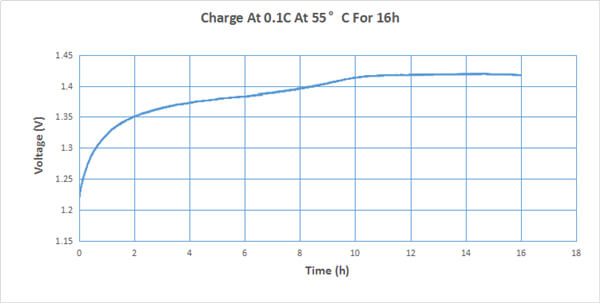

1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree

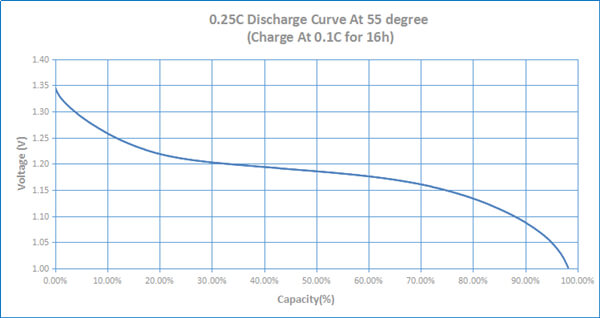

2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree

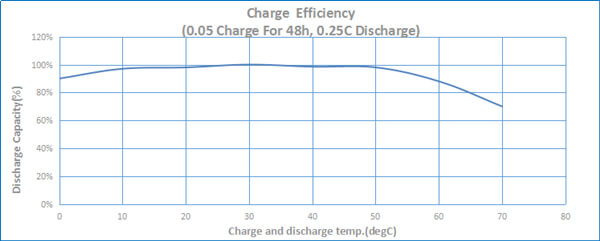

3. Ni-Cd Cell Charge Efficiency At Different Temperature

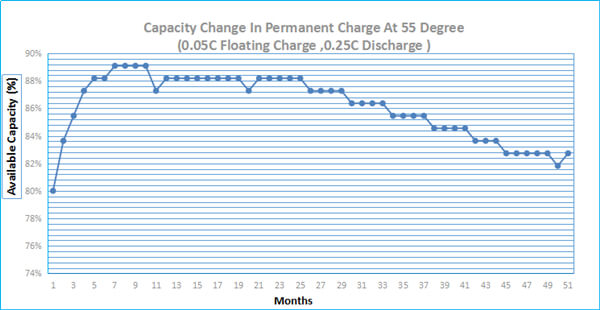

4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)

5. Ni-Cd Cell Cycle Life Curve

Why Godson?


-- Professional And Stay Focused
More than twenty years’ experience in battery industry; Keep focusing on emergency lighting battery, e-bike battery and power tool battery.

-- Great Reliability
Expected life of our Ni-Cd battery pack is more than 5 years; Expected life of our LiFePO4 battery pack is more than 10 years; Our batteries comply with standards of ICEL 1010, IEC 60598, IEC 61951, IEC 61960, IEC 62133 and UN38.3.

-- Super High Cost-Effective
Price of our products is much more competitive comparing with our competitors, but with the same or even better performance.

-- Strict Control In Production Process
ISO9001/2008 standards are strictly implemented in every process of our production.

-- Quick Response and Fast Delivery
Every inquiry would be replied within 24 hours, each order would be delivered within 30 days.

-- Flexibility in orders
Small orders acceptable as well.
