Battery Features:
■Long shelf life, which is more than 10 years;
■Wide operating temperature range from -60℃ to +85℃;
■Stable operating voltage and loading voltage;
■Available with small, medium and high pulse discharge current. Available
series including bobbin type, spiral type and battery packs.
■With unique performance in wet environment by adopting stainless steel
material, laser and hermetic glass-to-metal welding sealed;
■Long service life of above 5 years; Could be up to more than 10 years in
some special application;
■High energy density, could reach more than 650Wh/Kg, which is about 3-10
times of other series lithium battery;
■Complying with UL, SGS, CE, and UN38.3.
Application：
1. Signal lights and the post indicator transfer
2. Intelligent instruments
3. Smoke detector
4. Security device
5. Portable devices
6. Lighting
7. Medical equipment
8. Wireless and other military equipment
9. Water, gas and electricity meters
10. Memory backup power sources
11. Archery tracer nock
1. Model List of ER Series(Bobbin Type)
Model List Of ER Series(Bobbin Type) | ||||||||
Model | Nominal Voltage | Discharge Cut-off Voltage (V) | Nominal Capacity (mAh) | Max Continuous Discharge Current (mA) | Max Pulse Discharge Current (mA) | Max (mm) | Weight | Operating |

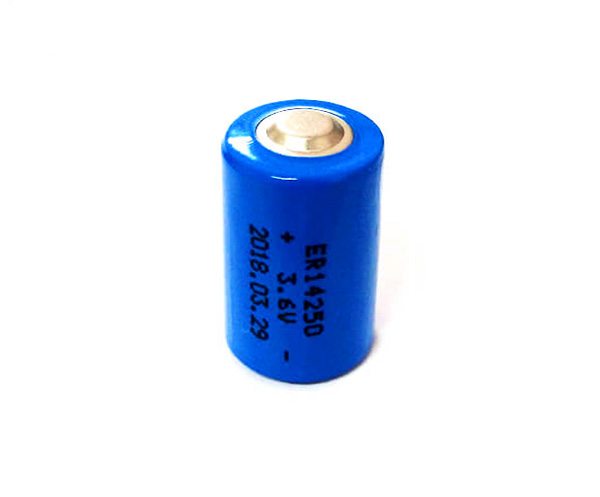

ER14250 | 3.6 | 2.0 | 1200 | 25 | 50 | 14.5x25.4 | 11.0 | -60 to +85 |
ER18505 | 3.6 | 2.0 | 4000 | 100 | 200 | 18.5x50.5 | 32.0 | -60 to +85 |
ER14505 | 3.6 | 2.0 | 2700 | 50 | 100 | 14.5x50.5 | 19.0 | -60 to +85 |
ER14335 | 3.6 | 2.0 | 1650 | 40 | 80 | 14.5x33.5 | 13.0 | -60 to +85 |
ER34615 | 3.6 | 2.0 | 19000 | 230 | 400 | 34.0x61.5 | 107 | -60 to +85 |
ER17335 | 3.6 | 2.0 | 2200 | 100 | 200 | 17.0x45.0 | 19 | -60 to +85 |
ER26500 | 3.6 | 2.0 | 9000 | 150 | 300 | 26.2x50.0 | 55 | -60 to +85 |
2. Model List of ER Series(SpiralType)
Model List Of ER Series(Spiral Type) | ||||||||
Model | Nominal (V) | Discharge Cut-off Voltage | Nominal Capacity | Max Continuous Discharge Current | Max Pulse Discharge Current | Max | Weight (g) | Operating Temperature |
ER34615M | 3.6 | 2.0 | 14500 | 2000 | 4000 | 34.0x61.5 | 110.0 | -60 to +85 |
ER17335M | 3.6 | 2.0 | 1500 | 1500 | 3000 | 17.0x34.5 | 20.0 | -60 to +85 |
ER26500M | 3.6 | 2.0 | 6500 | 1500 | 2500 | 26.2x50.0 | 55.0 | -60 to +85 |
ER18505M | 3.6 | 2.0 | 3500 | 1000 | 2000 | 18.5x50.5 | 32.0 | -60 to +85 |
ER14250M | 3.6 | 2.0 | 800 | 100 | 200 | 14.5x25.5 | 11.0 | -60 to +85 |
ER14505M | 3.6 | 2.0 | 2200 | 400 | 1000 | 14.5x50.5 | 19.0 | -60 to +85 |
ER14335M | 3.6 | 2.0 | 1300 | 200 | 400 | 14.5x33.5 | 15.0 | -60 to +85 |
