Model NO.: ER34615M 14.5Ah
Nominal capacity: 14.5Ah
Nominal voltage: 10.8V
Cell weight: 110g
Cell dimensions: 34.5(D) * 61.5(H) mm
Max. continuous current: 2000mA
Max. pulse current capacity: 4000mA
Storage(recommended): Max. 30℃
(For more severe condition, please consult GODSON)
Operating temperature: -55°~+85℃
Battery Testing:

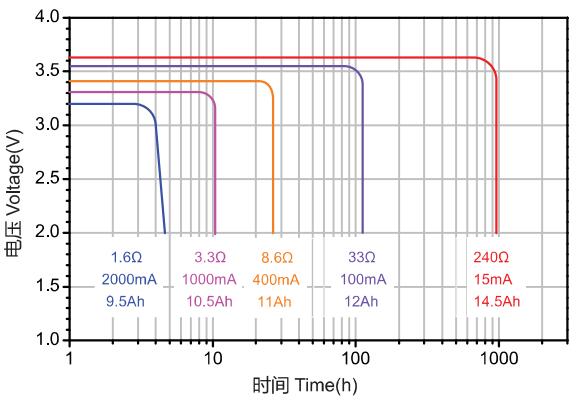

1. Discharge Characteristics(25℃)

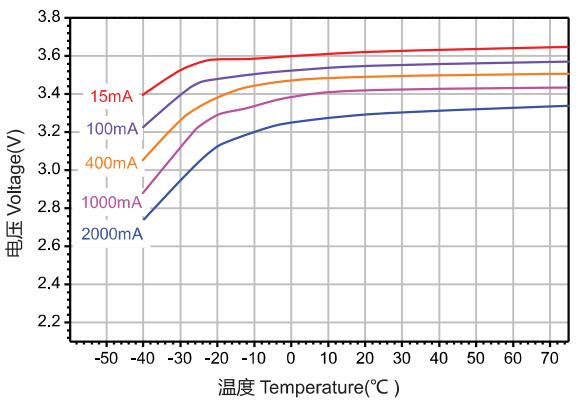

2. Voltage VS Temperature

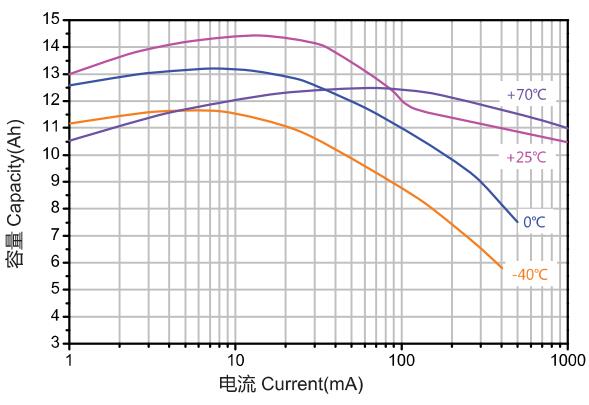

3. Capacity VS Current
Battery Features:
■Long shelf life, which is more than 10 years;
■Wide operating temperature range from -60℃ to +85℃;
■Stable operating voltage and loading voltage;
■Available with small, medium and high pulse discharge current. Available
series including bobbin type, spiral type and battery packs.
■With unique performance in wet environment by adopting stainless steel
material, laser and hermetic glass-to-metal welding sealed;
■Long service life of above 5 years; Could be up to more than 10 years in
some special application;
■High energy density, could reach more than 650Wh/Kg, which is about 3-10
times of other series lithium battery;
■Complying with UL, SGS, CE, and UN38.3.
Application：
1. Signal lights and the post indicator transfer
2. Intelligent instruments
3. Smoke detector
4. Security device
5. Portable devices
6. Lighting
7. Medical equipment
8. Wireless and other military equipment
9. Water, gas and electricity meters
10. Memory backup power sources
11. Archery tracer nock

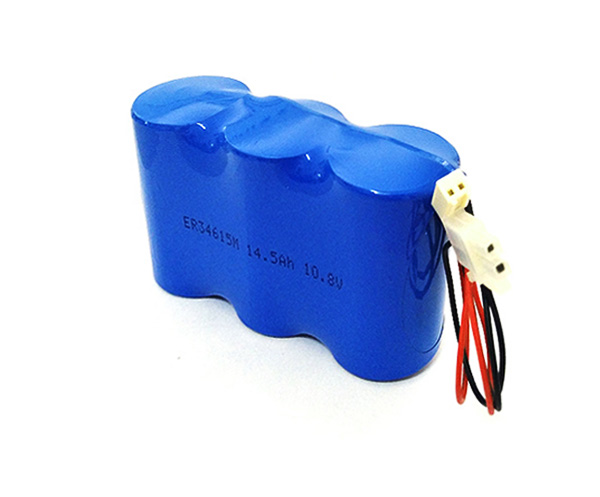

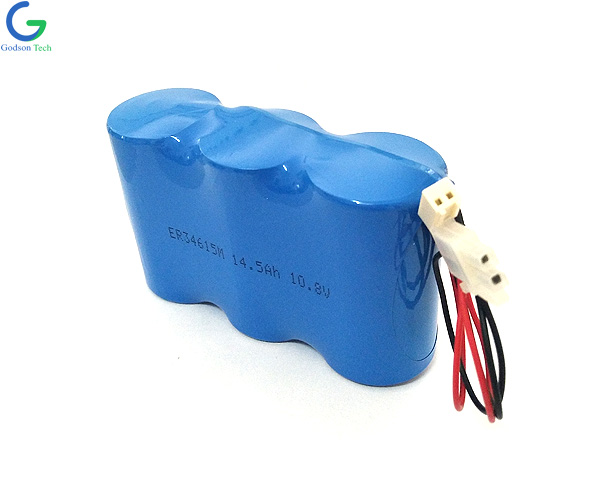

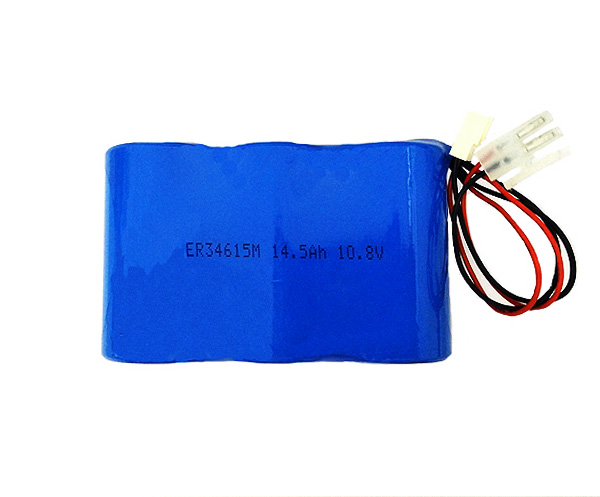

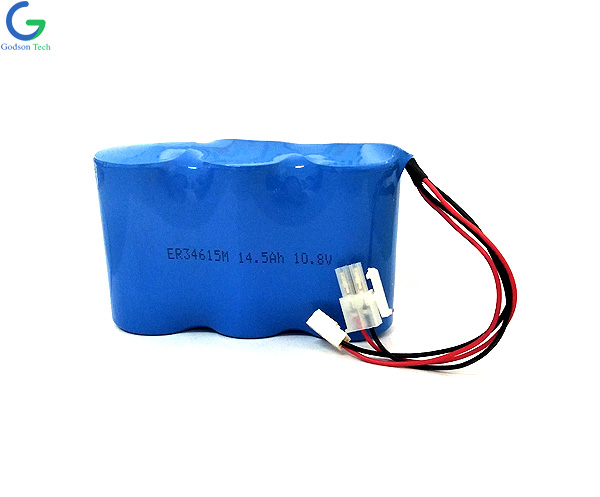

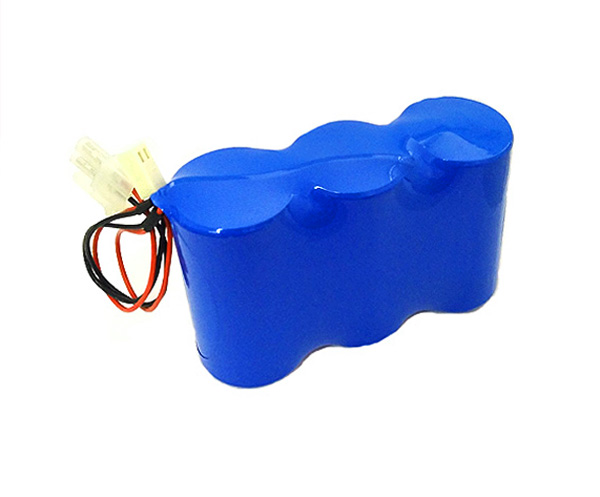

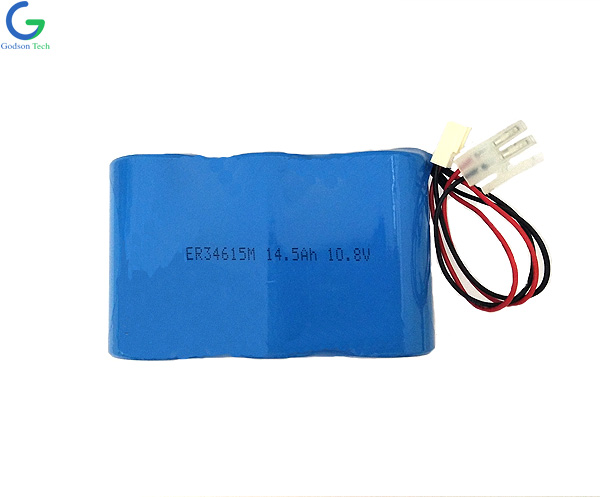

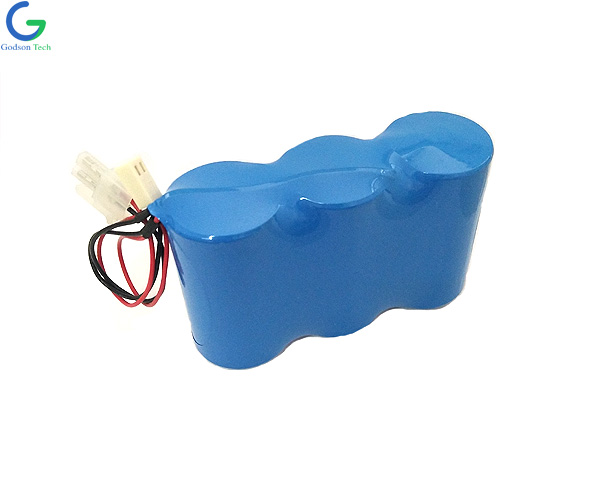

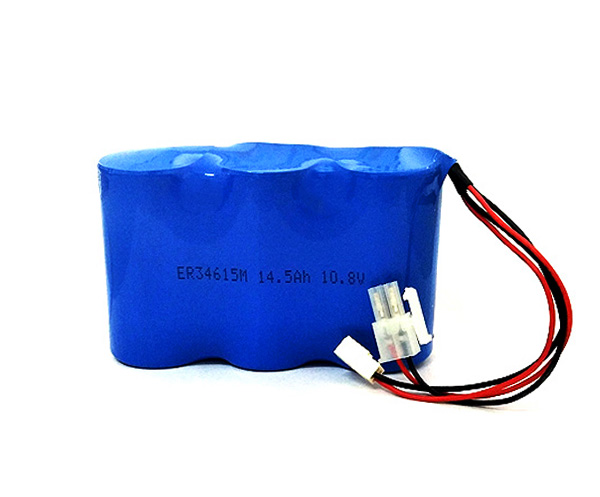

Battery Pictures:
