Model NO.: ER14250
Nominal capacity: 1.2Ah
Nominal voltage: 3.6V
Weight: Approx. 11g
Dimensions: 14.5(D) * 25.0(H) mm
Max. continuous current: 25mA
Max. pulse capacity: 50mA
Storage(recommended): Max. 30℃
(For more severe condition, please consult GODSON)
Operating temperature: -60~+85℃
Battery Testing:

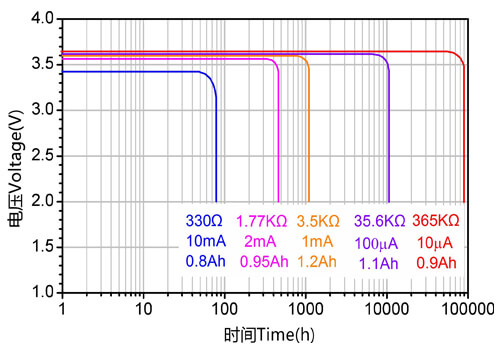

1. Discharge Characteristics(+25℃)

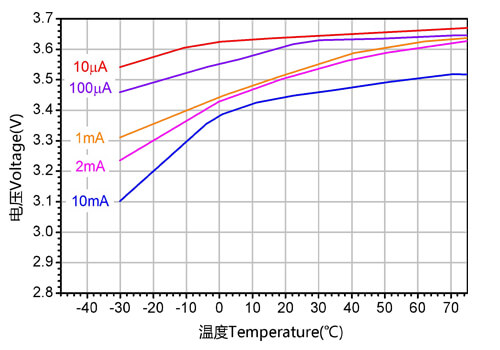

2. Voltage VS Temperature

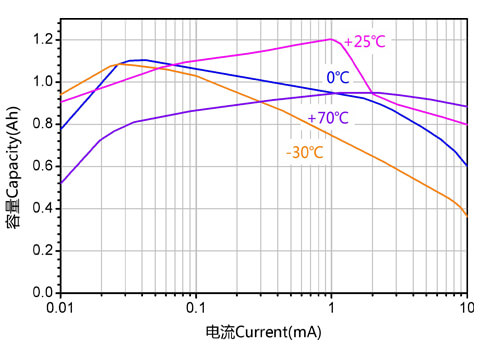

3. Capacity VS Current
Battery Features:
■Long shelf life, which is more than 10 years;
■Wide operating temperature range from -60℃ to +85℃;
■Stable operating voltage and loading voltage;
■Available with small, medium and high pulse discharge current. Available
series including bobbin type, spiral type and battery packs.
■With unique performance in wet environment by adopting stainless steel
material, laser and hermetic glass-to-metal welding sealed;
■Long service life of above 5 years; Could be up to more than 10 years in
some special application;
■High energy density, could reach more than 650Wh/Kg, which is about 3-10
times of other series lithium battery;
■Complying with UL, SGS, CE, and UN38.3.
Application：
1. Signal lights and the post indicator transfer
2. Intelligent instruments
3. Smoke detector
4. Security device
5. Portable devices
6. Lighting
7. Medical equipment
8. Wireless and other military equipment
9. Water, gas and electricity meters
10. Memory backup power sources
11. Archery tracer nock

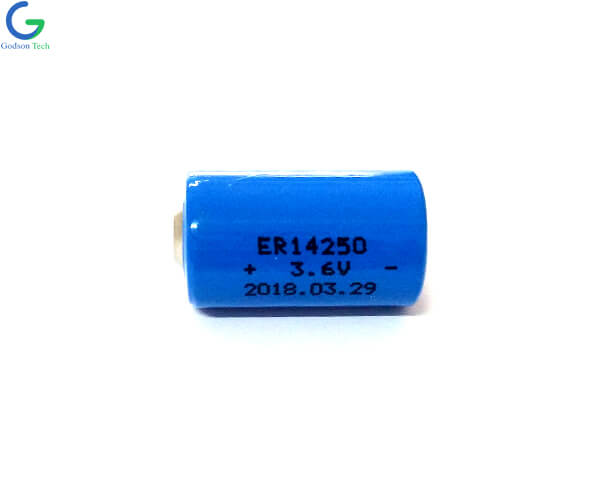

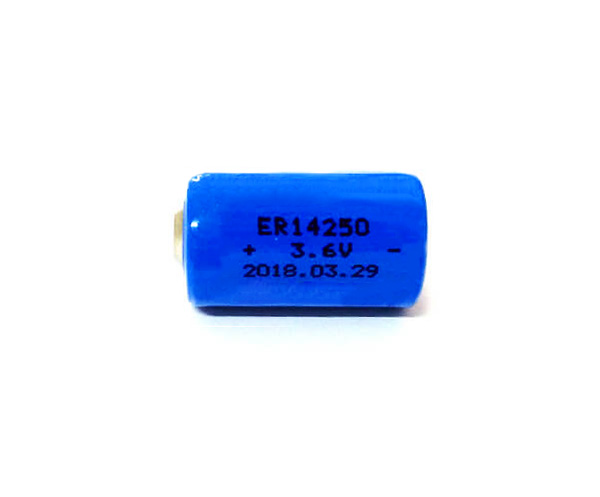

Battery Picture:
